How To Draw A Duct So It Crosses Over Or Under Another Duct In Right-Draw®

  • 15 Oct 19
  • 2.2k
  • 1m Read

TIP Of The WEEK:

How To Draw A Duct To Cross Over Or Under Another Duct In Right-Draw®

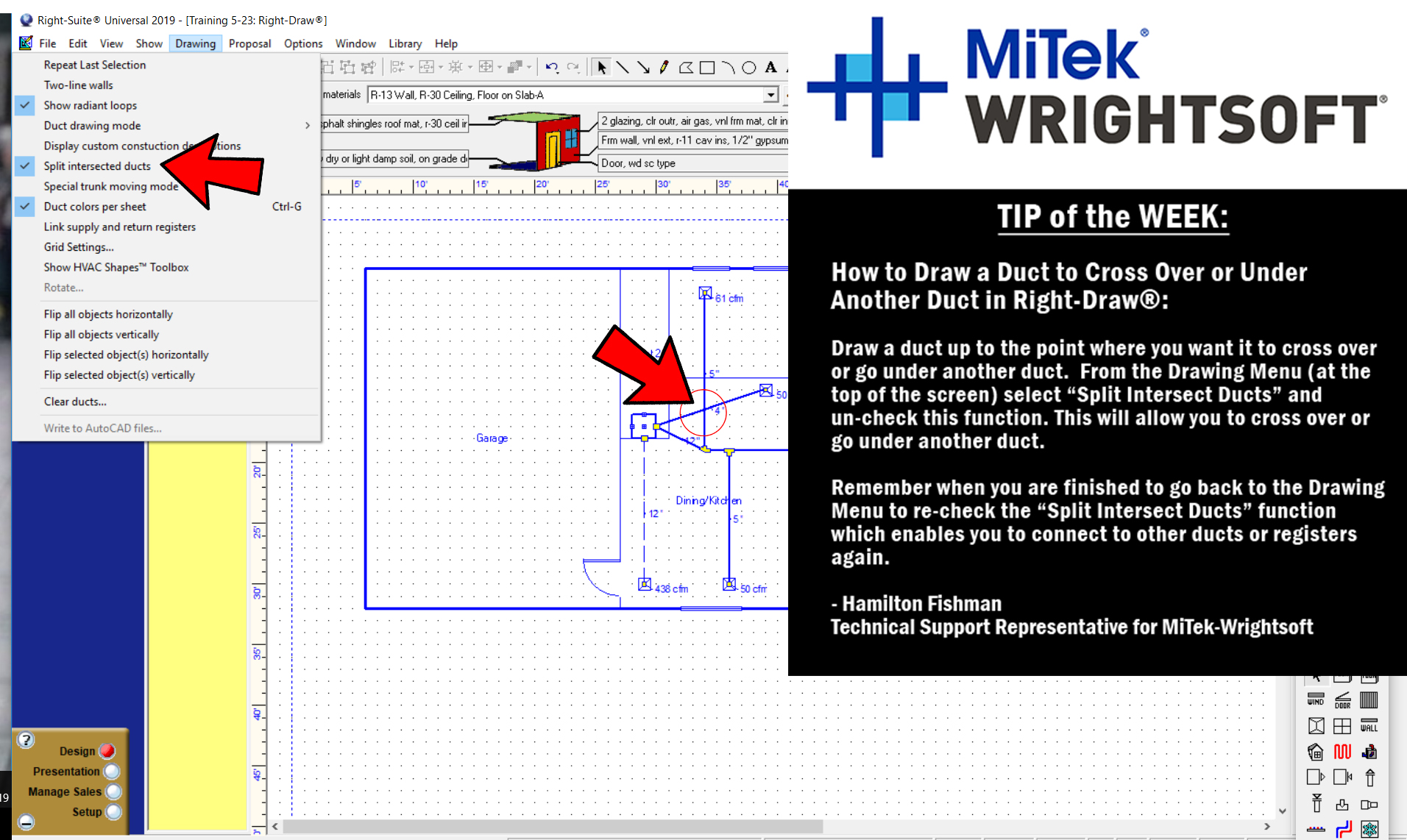

Draw A Duct Up To The Point Where You Want It To Cross Over Or Go Under Another Duct.  From The Drawing Menu (At The Top Of The Screen) Select “Split Intersect Ducts” And Uncheck This Function. This Will Allow You To Cross Over Or Go Under Another Duct. Remember When You Are Finished To Go Back To The Drawing Menu To Re-Check The “Split Intersect Ducts” Function Which Enables You To Connect To Other Ducts Or Registers Again.

– Hamilton Fishman Technical Support Representative For MiTek-Wrightsoft
